SMARTGEN HAT553KM

product Detail

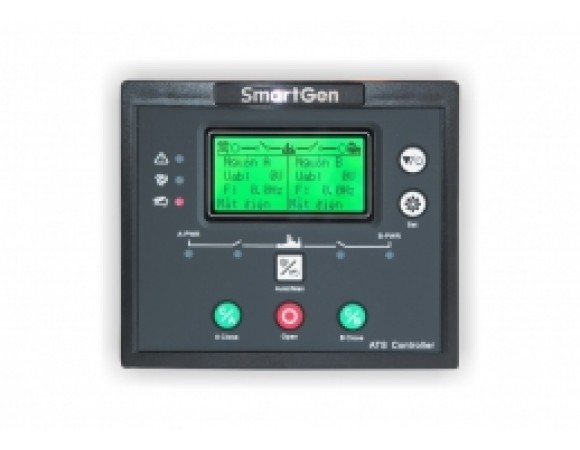

ATS CONTROLLER HAT 553KM
Price : Liên Hệ
Description HAT552KM/HAT553KM dual power ATS controller is a dual power transfer module integrated with configurable function, automatic measurement, LCD display, and digital communication. It combines digitalization, intelligence and networking together, which realizes automation for measuring and control process, reducing artificial operation mistakes. It is the ideal product for dual power transfer. HAT552KM is applicable for non-breaking switches, while HAT553KM is applicable for non-breaking, one-breaking, and two-breaking switches.
View : 11900

Technical Parameters

Items	Contents
Operating Voltage	AC supply, voltage range AC(170~277)V
Power Consumption	≤3W (Standby mode: <2W)
AC Voltage Input	AC system	HAT553KM	HAT552KM
	3P4W (L-L)	(170~277)V	(170~277)V
	3P3W (L-L))	N/A	N/A
	1P2W (L-N)	(170~277)V	(170~277)V
	2P3W (A-B)	(170~277)V	(170~277)V
Rated Frequency	50/60Hz

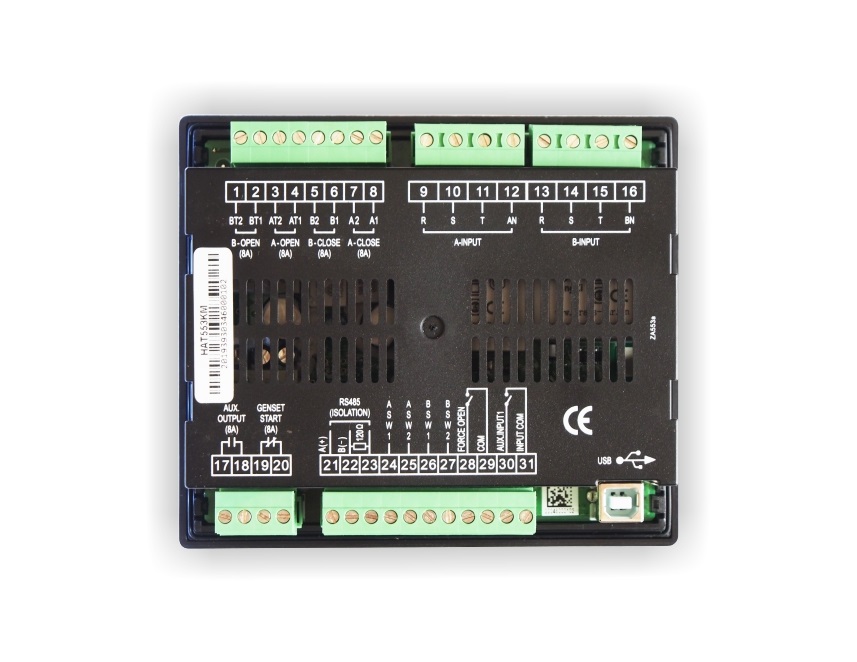

Close Relay Capacity	8A AC250V Active output
Open Relay Capacity	8A AC250V Active output
Auxiliary Relay Output 1 Capacity	8A AC250V Volts	free output
Dynamo Start Relay	8A AC250V Volts	free output
Digital Close Input	Active when ASW1 and ASW2 short connected; Active when BSW1 and BSW2 short connected;
Forced to Open Input	GND connected is active (not available for HAT552KM);
Digital Input 1	GND connected is active.
Communication	1. 1 RS485 isolated port, MODBUS Protocol; 2. D-form USB port;

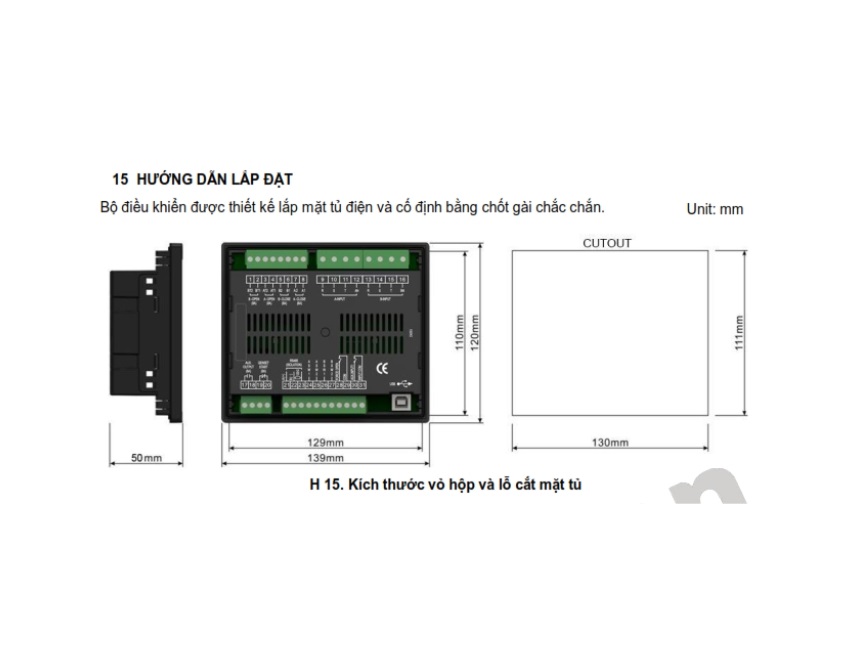

Case Dimensions	139mmx120mmx50mm
Panel Cutout	130mmx111mm
Working Conditions	Temperature: (-25~+70)°C; Humidity: (20~93)%RH
Working Conditions	Temperature: (-25~+70)°C; Humidity: (20~93)%RH
Storage Condition	Temperature: (-30~+80)°C
Protection Level	IP65 Gasket: when there is waterproof gasket installed between controller and the control panel;
Insulation Strength	Apply AC1.5kV voltage between high voltage terminal and low voltage terminal and the leakage current is not more than 3mA within 1min.
Weight	0.62kg
